Butterfly Valve

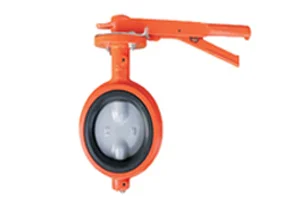

Butterfly Valve Manufacturer

With a dedicated effort to fulfill and facilitate the diverse needs of the industrial applications of our clients, we bring forth an eminent range of Butterfly Valve. These high quality valves are fabricated employing finest quality raw material and the most advanced technology available as per industrial quality norms.

These high functionality valves are broadly applied in different industrial applications. We manufacture these valves in diverse specifications and also customize them precisely as needed by our customers.

Butterfly Valve Manufacturer Ask Price

Salient Features of Butterfly Valve:

  • Easy to mount
  • Light weighted
  • High Dimensional precision
  • Anti-corrosive in nature
  • High Durability
  • Accurate Engineering
  • Very energy saving
  • Leak proof
  • Excellent texture
  • Easy usage
  • Robust construction

Application of Butterfly Valve:

Water treatment plant
Effluent treatment plant
Refrigeration & air-conditioning units
Sugar plants
Food processing industries

Technical Data

Specifications of Butterfly Valve:
One piece body Size: 50 mm to 400mm
Pressure Class: BS 6755 Part-1
Design: BS5 155 ,Api609,Mss sp 67&iso5752
Suitable to: BS 10 Table D,E,F,PN10/16
PART NO. QTY DESCRIPTION MATERIAL
1 1 Body CI., CS., SG., Iron, Cf8/Cf8m
2 1 Disc CI., CS., SG., Iron, Cf8/Cf8m
3 1 Seat Nitrile, Epdm, Viton Silicon
4 2 Shaft Aist 304/316/410
5 2 bearing Gm + Steel + Ptre
6 2 O-Ring Nitrile, Epdm, Viton Silicon
7 1 Taper Aisi 304/316
8 1 Plug Steel
9 1 Bush Polyacetal / Ptfe
DN(MM) A B BODY DIAMETER D
50 50 43 90 140
65 65 46 105 150
80 80 46 122 160
100 100 52 152 180
125 125 56 184 190
150 150 56 210 200
200 200 60 265 240
250 250 68 315 270
300 300 78 370 310
350 336 78 415 350
400 386 102 470 370
